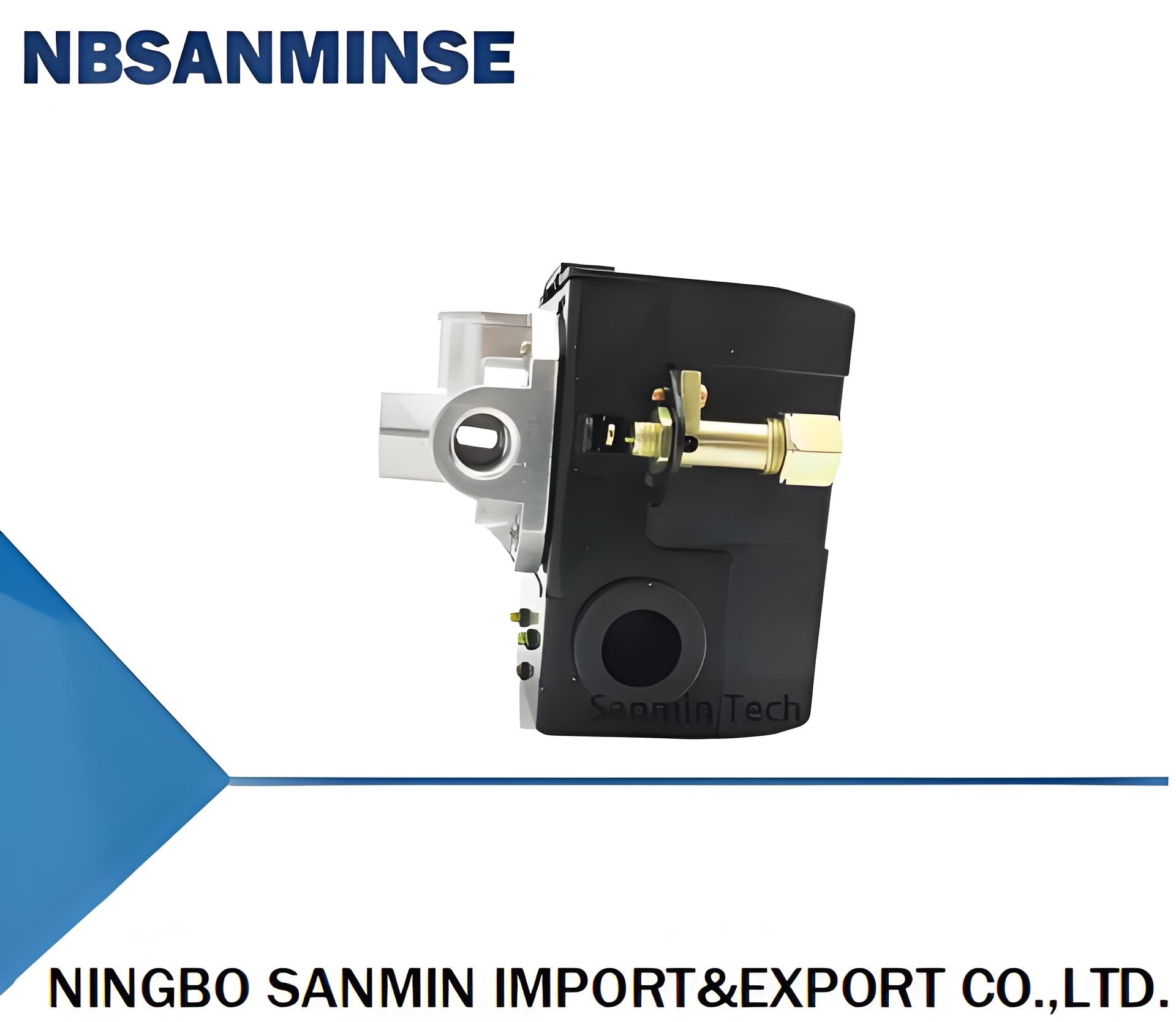

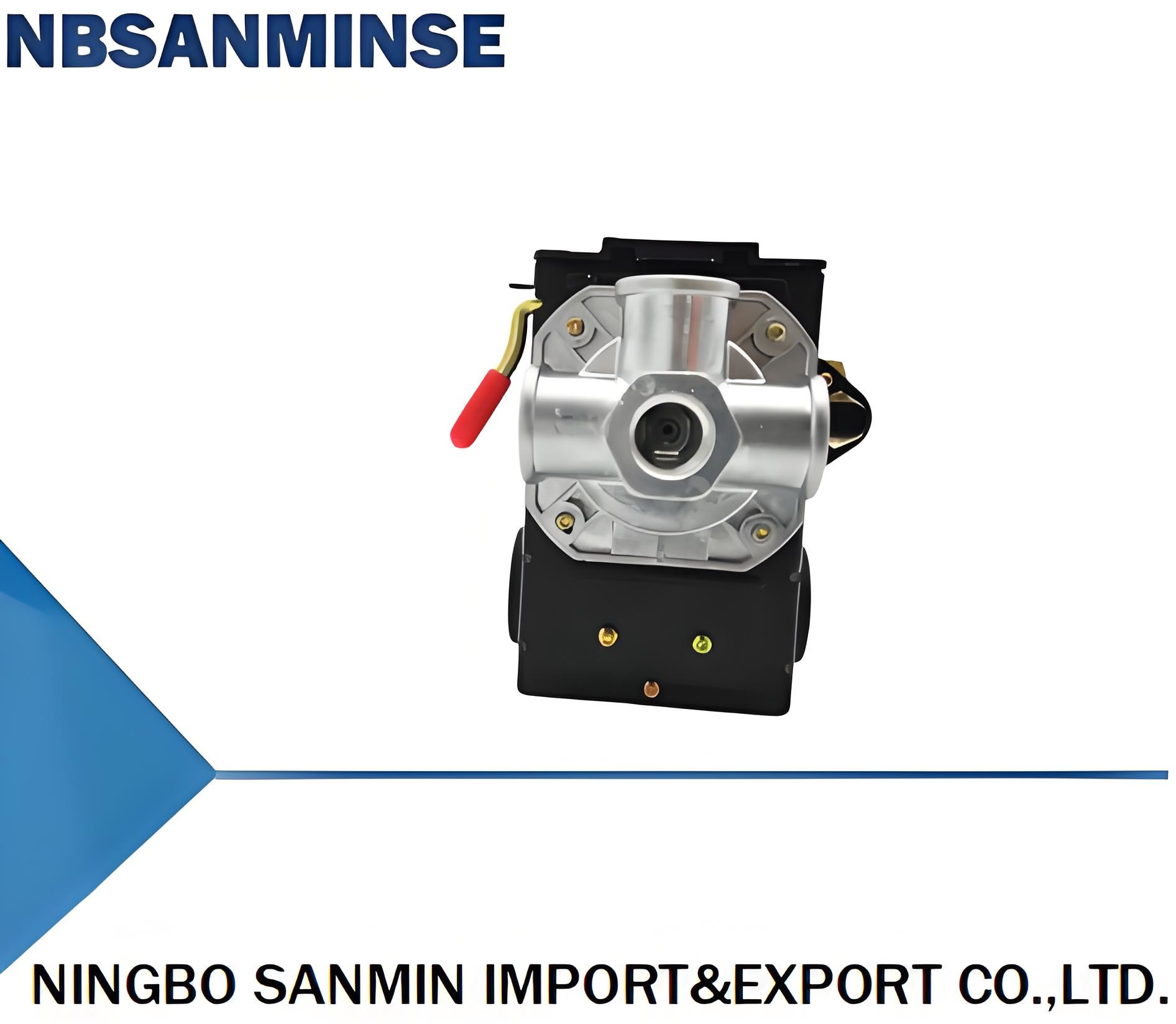

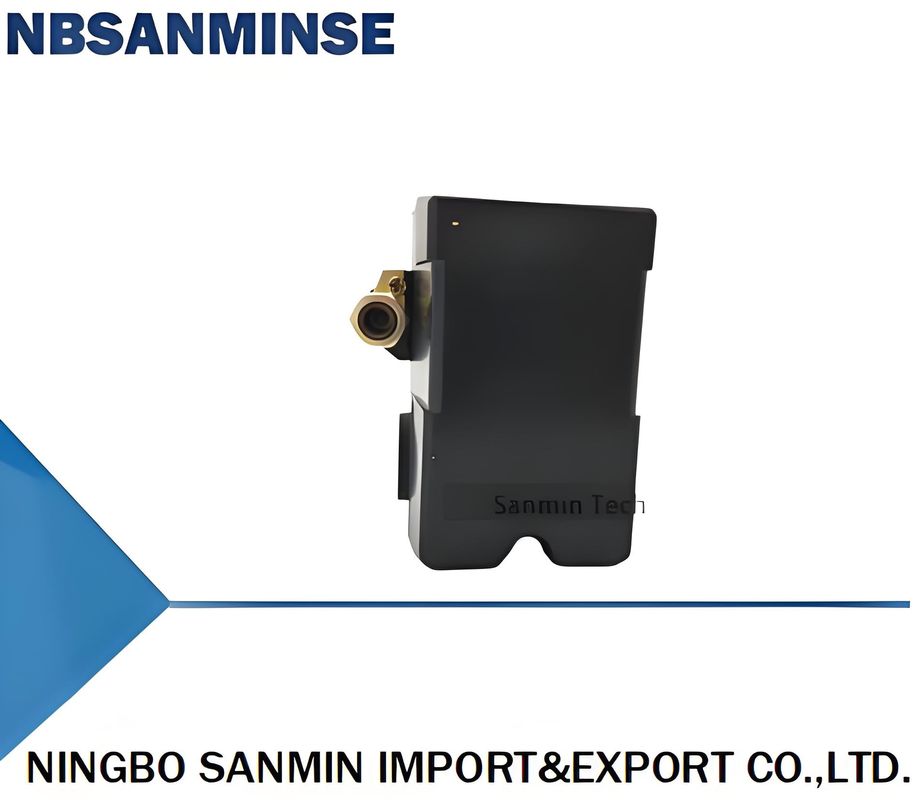

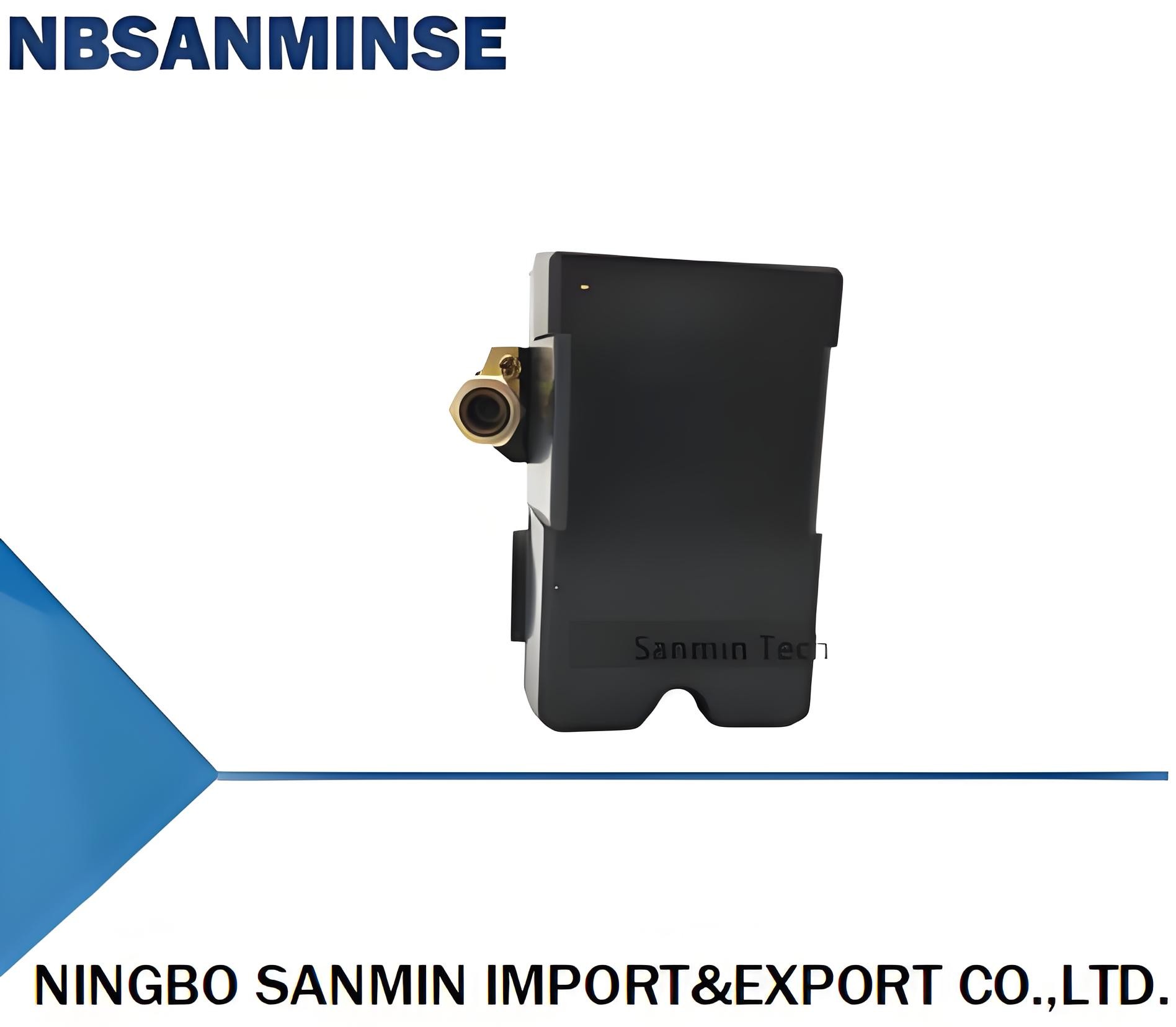

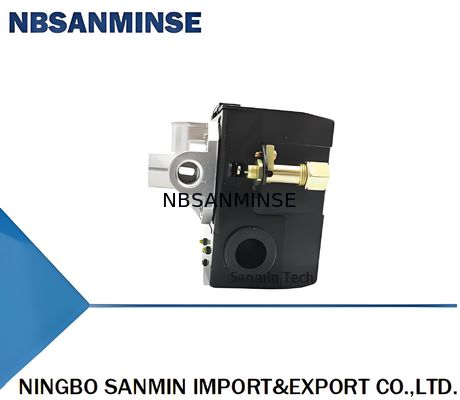

SMF 10 1/4 G NPT Air Compressor Pressure Switch For Easy Mounting Of Valve And Gauges Air Pressure Switch NBSANMINSE
SMF 10 1/4 G NPT Air Compressor Pressure Switch For Easy Mounting Of Valve And Gauges Air Pressure Switch NBSANMINSE SMF 10 1/4 G NPT Air Compressor Pressure Switch For Easy Mounting Of Valve And Gauges Air Pressure Switch NBSANMINSE SMF 10 1/4 G NPT Air Compressor Pressure Switch For Easy Mounting Of Valve And Gauges Air Pressure Switch NBSANMINSE
اکنون تماس بگیرید

SMF 10 1/4 G NPT Air Compressor Pressure Switch For Easy Mounting Of Valve And Gauges Air Pressure Switch NBSANMINSE

محل منبع: چین نام تجاری: NBSANMINSE
شماره مدل: SMF 10

اطلاعات تکمیلی
اندازه: k - 26a none (15a) گواهی: ce
ویژگی ها: نصب آسان مواد: پلاستیک
مدل: SMF10

توضیحات محصول

Product sellpoints

  • Multiple Pipe Fittings:Comes with NPT 1/4 Male or Female and G 1/4 " options for flexible installation.
  • Easy Mounting:Features a 4-port manifold design for effortless mounting of valves and gauges.
  • Dual Electrical Rating:Supports 120VAC and 240VAC, ensuring compatibility with a wide range of electrical systems.
  • Industrial Approvals:Meets UL, CSA, TUV CE, CCC standards for industrial safety and reliability.
  • Versatile Pressure Range:Available with preset ranges from 25-200 PSI to suit various air compressor needs.





Ex : ON :1Bar OFF:2Bar =NC

ON :2Bar OFF:1Bar =NO

ON :-0.9Bar OFF:-0.65Bar =NO

ON :-0.65Bar OFF:-0.9Bar =NC



ON>OFF is NO , ON<OFF is NC

The images shown are not all the actual item and are for your reference onlySMF 10 1/4 G NPT Air Compressor Pressure Switch For Easy Mounting Of Valve And Gauges Air Pressure Switch NBSANMINSE 0SMF 10 1/4 G NPT Air Compressor Pressure Switch For Easy Mounting Of Valve And Gauges Air Pressure Switch NBSANMINSE 1SMF 10 1/4 G NPT Air Compressor Pressure Switch For Easy Mounting Of Valve And Gauges Air Pressure Switch NBSANMINSE 2SMF 10 1/4 G NPT Air Compressor Pressure Switch For Easy Mounting Of Valve And Gauges Air Pressure Switch NBSANMINSE 3SMF 10 1/4 G NPT Air Compressor Pressure Switch For Easy Mounting Of Valve And Gauges Air Pressure Switch NBSANMINSE 4SMF 10 1/4 G NPT Air Compressor Pressure Switch For Easy Mounting Of Valve And Gauges Air Pressure Switch NBSANMINSE 5SMF 10 1/4 G NPT Air Compressor Pressure Switch For Easy Mounting Of Valve And Gauges Air Pressure Switch NBSANMINSE 6


G1-4 = G 1/4 "
NPT1-4 = NPT 1/4"

Normally with short handle ,vertical design,female thread,if special request,please make a memo to us during payment.

The SMF10 pressure switches are used to regulate the tank pressure between two preset values on small (up to 175psi) electrically driven air compressors. They are available with an unloader valve, which prevents compressors from starting under load, and an auto-off disconnect lever for manual cut off the compressor. A four port manifold style is available which provides a means for easy mounting of valves and gauges.

MODEL
Min ON (Cut-In) PSI
Max Off
(Cut-Out) PSI
Differential
PSI
Factory Setting PSI
Electrical Rating
Pipe Fittings
Contact Arrangement
120VAC
240VAC
SMF10-1H1
25
100
20-30
50-80
20A
12A
NPT 1/4 Male or Female NPT
NC
SMF10-1H2
35
150
30-40
85-115
20A
12A
1/4" Male or Female NPT
NC
SMF10-1H3
50
175
35-55
110-150
20A
12A
1/4" Male or Female NPT
NC
SMF10-4H1
25
100
20-30
50-80
20A
12A
1/4" Female NPT (4 Port)
NC
SMF10-4H2
35
150
30-40
85-115
20A
12A
1/4" Female NPT (4 Port)
NC
SMF10-4H3
50
175
35-55
110-150
20A
12A
1/4" Female NPT (4 Port)
NC

MODEL
Min ON (Cut-In) PSI
Max Off
(Cut-Out) PSI
Differential PSI
Factory Setting PSI
Electrical Rating
Pipe Fittings
Contact Arrangement
120VAC
240VAC
SMF10A-1H1
25
100
20-30
50-80
26A
26A
NPT 1/4 Male or Female NPT
NC
SMF10A-1H2
35
150
30-40
85-115
26A
26A
1/4" Male or Female NPT
NC
SMF10A-1H3
50
175
35-55
110-150
26A
26A
1/4" Male or Female NPT
NC
SMF10A-1H4
70
200
40-55
130-175
26A
26A
1/4" Male or Female NPT
NC
SMF10A-4H1
25
100
20-30
50-80
26A
26A
1/4" Female NPT (4 Port)
NC
SMF10A-4H2
35
150
30-40
85-115
26A
26A
1/4" Female NPT (4 Port)
NC
SMF10A-4H3
50
175
35-55
110-150
26A
26A
1/4" Female NPT (4 Port)
NC
SMF10A-4H4
70
200
40-55
130-175
26A
26A
1/4" Female NPT (4 Port)
NC

Approval: UL, CSA, TUV CE, CCC
G1/4 (BSP 1/4) Male or Female Pipe Fittings are available.
Conversion: 1Kgf/cm2 = 14.2PSI , 1bar = 14.5PSI
